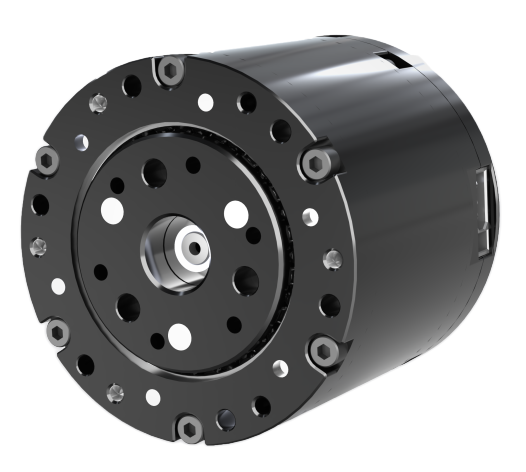

Planetary integrated joint actuator
30 Nm peak planetary joint actuator, 40:1 ratio: MGA-PJ-43-10-40
The source publishes one configuration with a 40:1 reduction ratio, 10 Nm rated torque, 30 Nm under the source’s “Peak torque (>3 s)” table label, and 88 rpm peak speed. Its ratio and output-speed figures should be screened together against the required joint motion profile.
Does the 40:1 configuration meet the required output speed while keeping peak torque within the source duration limit?
Model 1 summary
Start with the published torque, speed, mass, and ratio
Summary values are transcribed from the catalogue strip and checked against the Model 1 table. They are not a substitute for an application duty-cycle review.
- Peak torque (>3 s)
- 30 Nm
- Peak speed
- 88 RPM
- Weight
- 356 g
- Reduction ratio
- 40
Verified fact
What this catalogue record confirms
MGA-PJ-43-10-40 is identified in the supplied product literature as a planetary integrated joint actuator. The specification tables below retain the source's Model 1 and Model 2 labels and every listed field.
- Standard configuration has no through-bore and does not support a brake.
- Standard communication supports CAN bus; EtherCAT/CAN FD can be customized.
- The standard configuration has no water-resistance protection. Contact sales before ordering if needed.
Confirm for your project
Selection questions that still need an application answer
A catalogue value narrows the comparison. It does not establish fit for a mechanism without the load profile, mounting stack, controller, and operating environment.
- Required continuous torque, peak torque, peak duration, and repetition rate
- Output speed, acceleration, reversal, impact, and duty cycle
- Mounting face, bolt pattern, shaft/bore, cable route, and external loads
- Supply voltage, control mode, communication, feedback, brake, and protection requirements
MGA-PJ-43-10-40 technical specifications
The catalogue labels its columns Model 1 and Model 2 but does not define the difference between them. Both labels are retained as published. A source dash or unpopulated cell is presented as “Not specified in source.”
| Parameter | Unit | Model 1 | Model 2 |
|---|---|---|---|
| Operating voltage | V | 12-60 | Not specified in source |
| Rated voltage | V | 48 | Not specified in source |
| Rated torque | Nm | 10 | Not specified in source |
| Rated speed | RPM | 31 | Not specified in source |
| Rated current | A(rms) | 1.3 | Not specified in source |
| Peak torque (>3 s) | Nm | 30 | Not specified in source |
| Peak speed | RPM | 88 | Not specified in source |
| Peak current | A(rms) | 4.0 | Not specified in source |
| Torque constant | Nm/A | 7.4 | Not specified in source |
| Back-EMF constant | Vrms/Krpm | Not specified in source | Not specified in source |
| Speed constant | rpm/V | 73 | Not specified in source |
| Motor constant | Nm/√W | Not specified in source | Not specified in source |
| Electromechanical time constant | ms | Not specified in source | Not specified in source |
| Electrical time constant | ms | Not specified in source | Not specified in source |
| Pole pairs | — | 14 | Not specified in source |
| Winding connection | — | Star | Not specified in source |
| Phase resistance | Ω | 2.09 | Not specified in source |
| Phase inductance | mH | 1.1 | Not specified in source |
| Parameter | Unit | Model 1 | Model 2 |
|---|---|---|---|
| Reduction ratio | — | 40 | Not specified in source |
| Reducer backlash | Arcmin | 10 | Not specified in source |
| Output bearing | — | Crossed-roller bearing | Not specified in source |
| Backdrive torque | Nm | 0.55 | Not specified in source |
| Rotational inertia | g.cm² | Not specified in source | Not specified in source |
| Weight | g | 356 | Not specified in source |
| Axial load | kN | 4.8 | Not specified in source |
| Radial load | kN | 2.1 | Not specified in source |
| Parameter | Unit | Model 1 | Model 2 |
|---|---|---|---|
| Control bandwidth | Hz | 2000 | Not specified in source |
| Communication | — | CAN | Not specified in source |
| Encoder type | — | Mechanical dual encoder | Not specified in source |
| Encoder resolution | bit | 14 | Not specified in source |
| CAN interface | — | XT30(2+2)PB-M | Not specified in source |
| USB interface | — | SH1.0-4P | Not specified in source |
| Power interface | — | XT30(2+2)PB-M | Not specified in source |
| Control modes | — | Servo mode; Speed mode; Torque mode; Force-position hybrid mode | Not specified in source |
| Protection functions | — | Overvoltage protection; Overcurrent protection; Overtemperature protection | Not specified in source |
| Parameter | Unit | Model 1 | Model 2 |
|---|---|---|---|
| Duty type | — | S2 | Not specified in source |
| Ingress protection | — | IP40 | Not specified in source |
| Cooling method | — | IC410 | Not specified in source |
| Ambient operating temperature | — | -20℃~50℃ | Not specified in source |
| Insulation class | — | F | Not specified in source |
| Dielectric strength | — | 500V 1kHz 1A 1ms | Not specified in source |
| Insulation resistance | — | 100MΩ 20℃ | Not specified in source |
| Noise | — | 60dB/1.0m | Not specified in source |
| Temperature sensor | — | NTC MF52B 103F3950 | Not specified in source |
All data are provided for U= 48 V and T= 25°C, unless otherwise specified. Specifications for different voltage levels or other operating limits, and corresponding simulation models, are available upon request.
Have a torque-speed profile or mounting drawing?
Send it with the duty cycle and controller requirements for a model-specific engineering review.
02 · Check interfaces
Resolve the mechanical and electrical stack
Compare the original drawing with the mating parts, loads, cable route, connectors, supply, communication protocol, and feedback requirements.
03 · Confirm the build
Request configuration-specific evidence
Confirm the selected Model 1/Model 2 configuration, current drawing revision, option content, test conditions, and validation evidence before freezing a design.
Original drawing and motor performance map

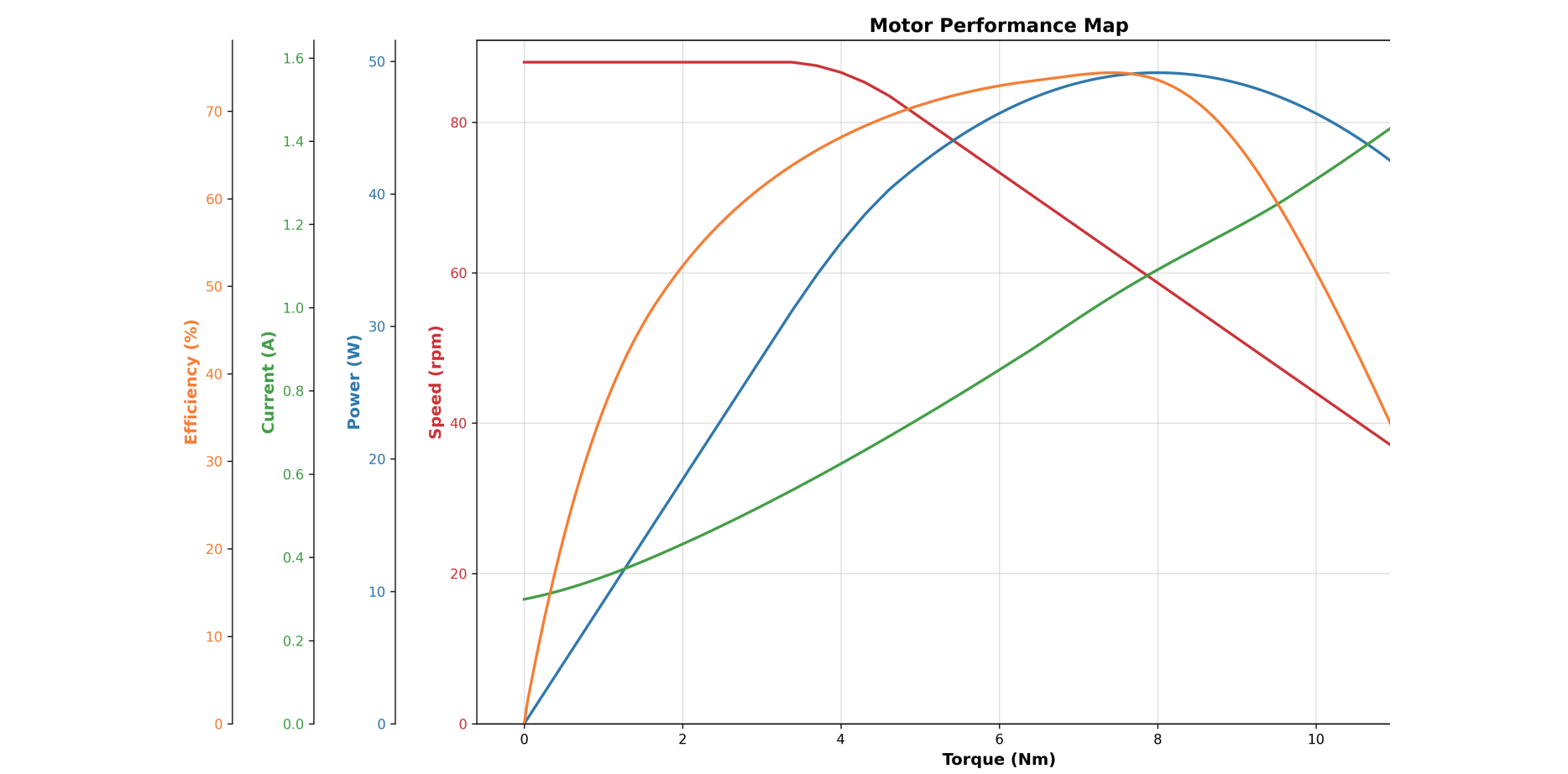

The drawing is reproduced from the supplied source image unchanged, including any visible source mark. The performance-map image is also used unchanged. Its graphic identifies torque, speed, power, current, and efficiency axes, but does not identify curve names or a Model 1/Model 2 configuration.
Nearby catalogue records to compare
These links help compare published data within the same product set. Similar headline values do not make actuators interchangeable.
Planetary · Model 1
MGA-PJ-43-10-25
6 Nm rated torque · 18 Nm peak torque · 25:1 ratio
Compare source dataPlanetary · Model 1
MGA-PJ-43-15-36
20 Nm rated torque · 70 Nm peak torque · 36:1 ratio
Compare source dataPlanetary · Model 1
MGA-PJ-60-10-39
25 Nm rated torque · 76 Nm peak torque · 39:1 ratio
Compare source dataFor engineering and sourcing teams
Make the first review specific
Include the project inputs that let an engineer compare the source data with your mechanism. Unknown requirements can stay open; they should not be replaced with assumed operating limits.
- Target continuous and peak output torque, including duration and cycle rate
- Required output speed, acceleration, reversals, and duty type
- Mounting drawing, mating parts, bore/shaft, cable path, and external loads
- Supply voltage, drive/controller, protocol, encoder, brake, and protection needs
- Ambient temperature, contamination, shock, noise, and service-life targets
- Prototype or production stage, quantity range, destination, and validation plan
MGA-PJ-43-10-40 frequently asked questions
What torque and speed does MGA-PJ-43-10-40 list?
Model 1 lists 10 Nm rated torque and 30 Nm under the source label “Peak torque (>3 s),” with 31 RPM rated speed and 88 RPM peak speed. The catalogue operating-condition note below applies unless a field is specified otherwise.
What do Model 1 and Model 2 mean?
The source page populates Model 1 only. The Model 2 column is marked “Not specified in source”; this page does not infer a second configuration.
Are the listed values a complete duty-cycle guarantee?
No. Use the table as a source-backed screening record. Confirm the required torque-speed profile, peak duration and repetition, duty cycle, thermal limits, mounting loads, controls, and operating environment before design release.
Which motor-performance-map curves apply to each configuration?
The supplied map shows axes for torque, speed, power, current, and efficiency but does not label the curves or identify a Model 1/Model 2 configuration. Confirm the applicable configuration and test conditions before using the map for controller or thermal sizing.
